Wood Walls

Derako®
Solid Grill Wall

The Solid Grill wall system is a wood solution in its most natural form. Being available with a wide choice of wood types, dimensions of the slats and finishes, there are a number of possibilities for the appearance of the wall.

A wall application of the grill system consists of solid wooden slats that are fixed together with aluminium or plastic flexible dowels. Together, these assembled slats form the grill panel and are fitted into each other by means of half-lap dowel joints. In this way, one surface is created, without any interruptions. Just as with ceiling applications each panel is delivered to size, based on the building structure’s data and in mutual consultation.

Key features
  • Made to measure solution
  • Curved or arched applications also possible
  • Comprehensive warranty
  • Fast and simple assembly
  • Budget flexible and very suitable for prefab building
Performance profile
  • Sound absorption (αw) Up to 0.35
  • Sustainability Cradle to Cradle Certified® Silver, FSC®, PEFC
  • Reaction to fire B-s2,d0 (B-s1,d0 with special treatment)
  • Ceiling / Wall Both versions available

Colours & Wood types

Yellow Poplar

African Ayous

Yellow Pine

European Pine

Accoya

Siberian Larch

American White Oak

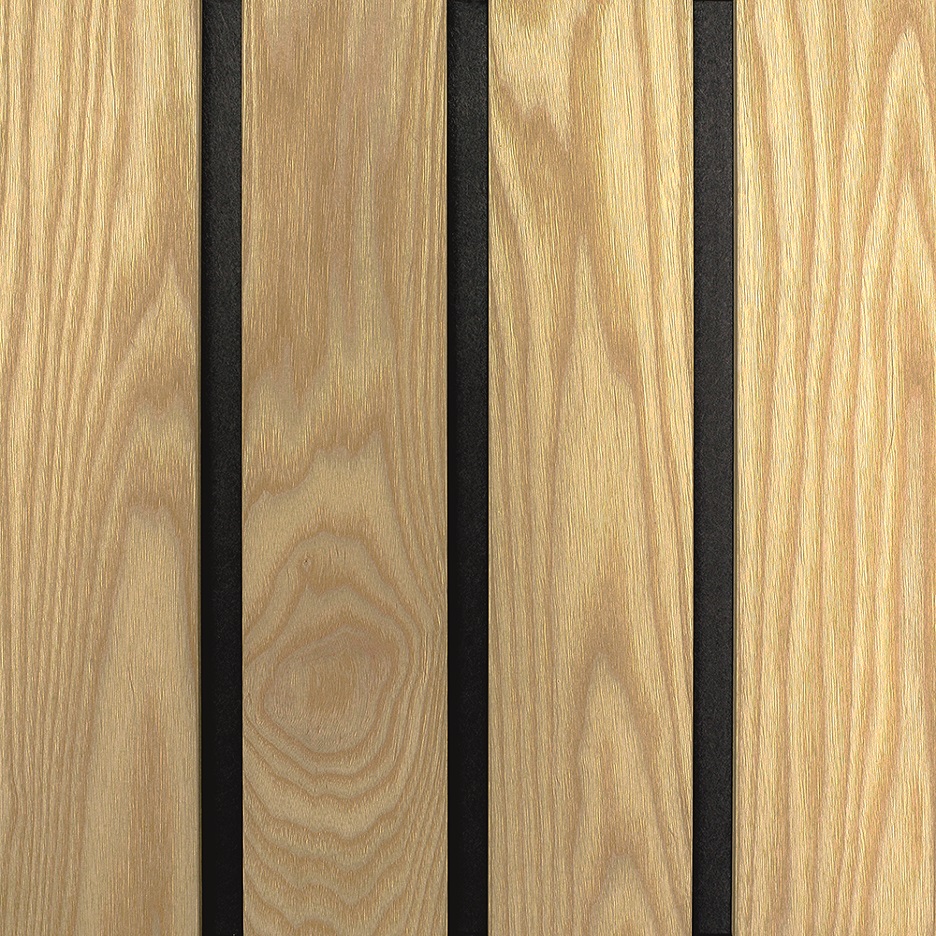

American Ash

European Oak

American Red Oak

Cherry

Oregon Pine

Jatoba

Teak

Cambara

Merbau

Mahogany

Western Red Cedar

American Walnut

Wenge

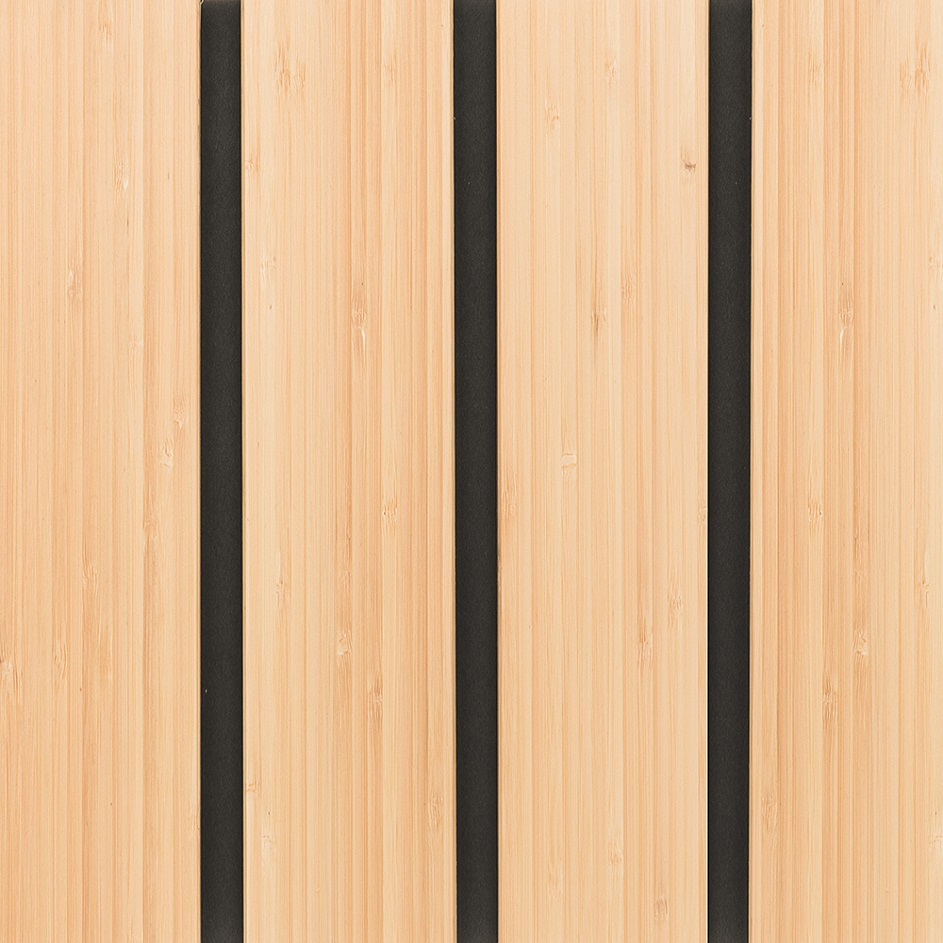

Bamboe SP Natural

Bamboe SP Caramel

Thermowood Frake

Yellow Poplar

African Ayous

Yellow Pine

European Pine

Accoya

Siberian Larch

American White Oak

American Ash

European Oak

American Red Oak

Cherry

Oregon Pine

Jatoba

Teak

Cambara

Merbau

Mahogany

Western Red Cedar

American Walnut

Wenge

Bamboe SP Natural

Bamboe SP Caramel

Thermowood Frake

Colours on screen may vary from the original.

Colours and tones

Technical Details

The grill wall system consists of wooden slats that are connected with an aluminium dowel and assembled into grill panels. The panels are screwed directly onto the building structure’s subframe by means of wall clips. There is no profile available for the connection length of the wall panels, but an open joint of at least 10 mm must be maintained. Depending on the wood types, a grill panel can have a maximum length of 3300 mm. The distance between the dowels is a constant 300 mm, and each dowel has a standard diameter of 12 mm.

  • Material Solid wood
  • Dimensions slats Height: 31 – 120 mm
  • Thickness: 15 – 31 mm
  • Dimensions grill panel Length: 3300 mm
  • Modules Various joint widths, depending on slat size
  • VOC emission class A+
